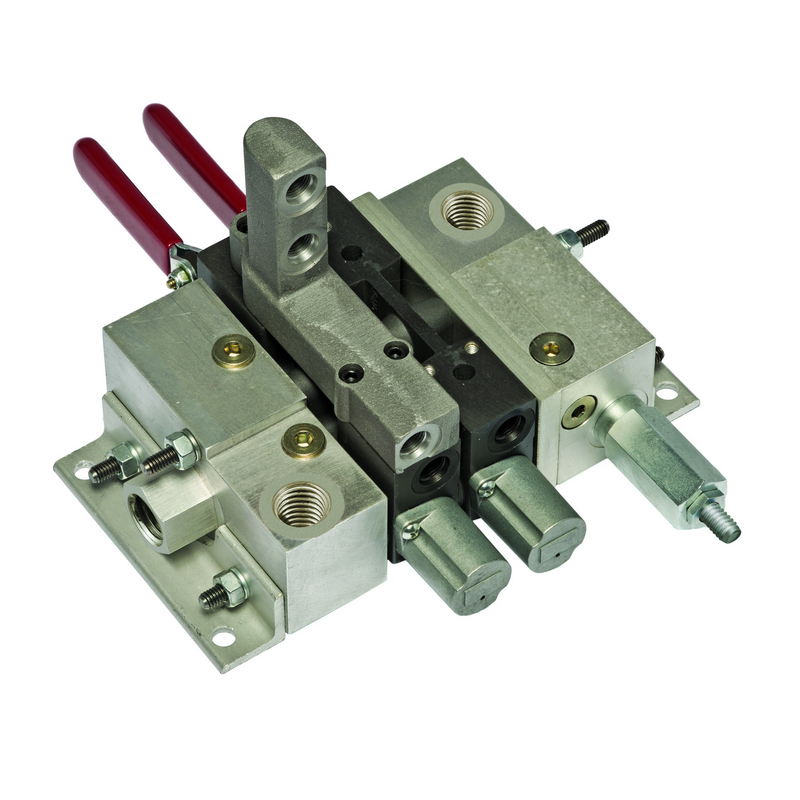

Back view
previous
next

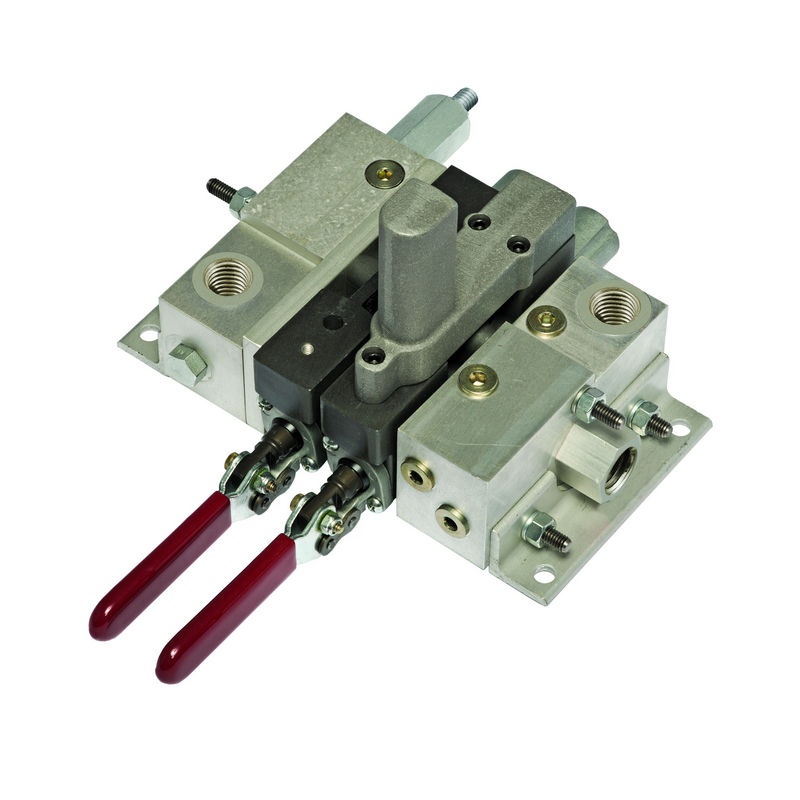

Directional Control Valves

Directional Controls Valves, sectional, pressures to 2000 psi, 2-21 sections, Power Beyond, Relief options.

Farris

Directional Control Valves Features & Benefits:

  • Power beyond, Blocked and Open spool options
  • 4W3P - Manually Operated
  • Lightweight aluminum construction
  • Integral relief in P
  • High Flow option, 15 GPM
  • 2 – 21 sections
  • SAE #8 ports A & B
  • SAE #10 ports P & T
  • Custom porting available
  • 12 gpm, 2200 psi, intermittent
More Details

Overview

Directional Control Valves

Functionality & Power

Directional control valves allow fluids or gases to flow into different paths from valve ports, which provide a passageway for flow to or from other components/sources. They are one of the most important parts of hydraulic and pneumatic systems.

A directional control valve consists of a mechanically or electrically actuated spool inside a cylinder. The spool’s position allows or prevents fluid flow within the passageway; this often occurs instantly, causing fluid to accelerate and decelerate rapidly.

Direction Control Valves Ports & Positions

When selecting a directional control valve, two primary elements must be considered: the number of ports and directional positions the valve can achieve. The number of positions refers to the number of flow paths a valve can provide.

Directional Control Valve Applications

Mobile Hydraulic Directional Control Valves are used in the Agricultural, Industrial, and Mobile industries to provide smooth operation, low-pressure drop, and rapid response for precise fluid control in a lightweight constructed valve. These valves are rated at 2000 psi and flows to 10 GPM. Their applicability makes them increasingly sought after and are used in many applications, such as:

  • Car carriers
  • Machinery - Tractors
  • Assembly lines
  • Energy production
  • Marine equipment
  • Construction machines
  • Mining machines
  • Material handling cranes
  • Trucks & Rigs
